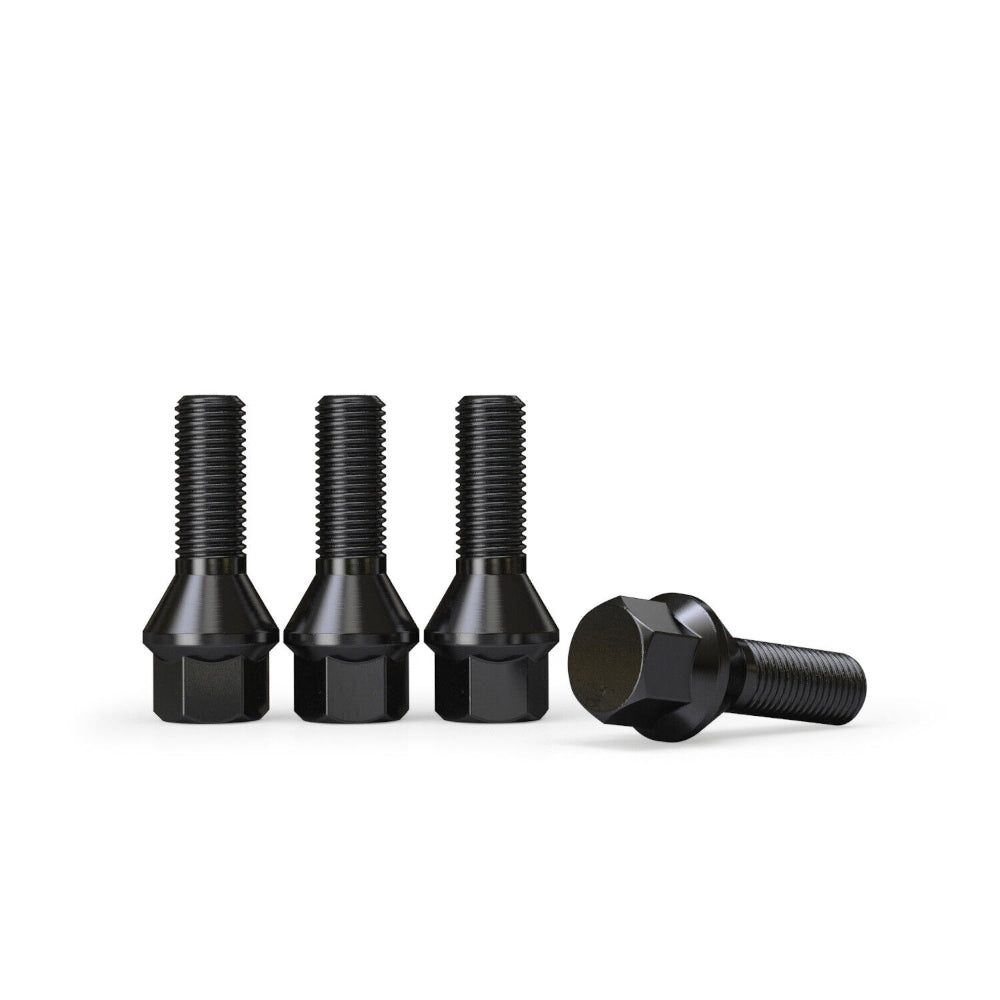

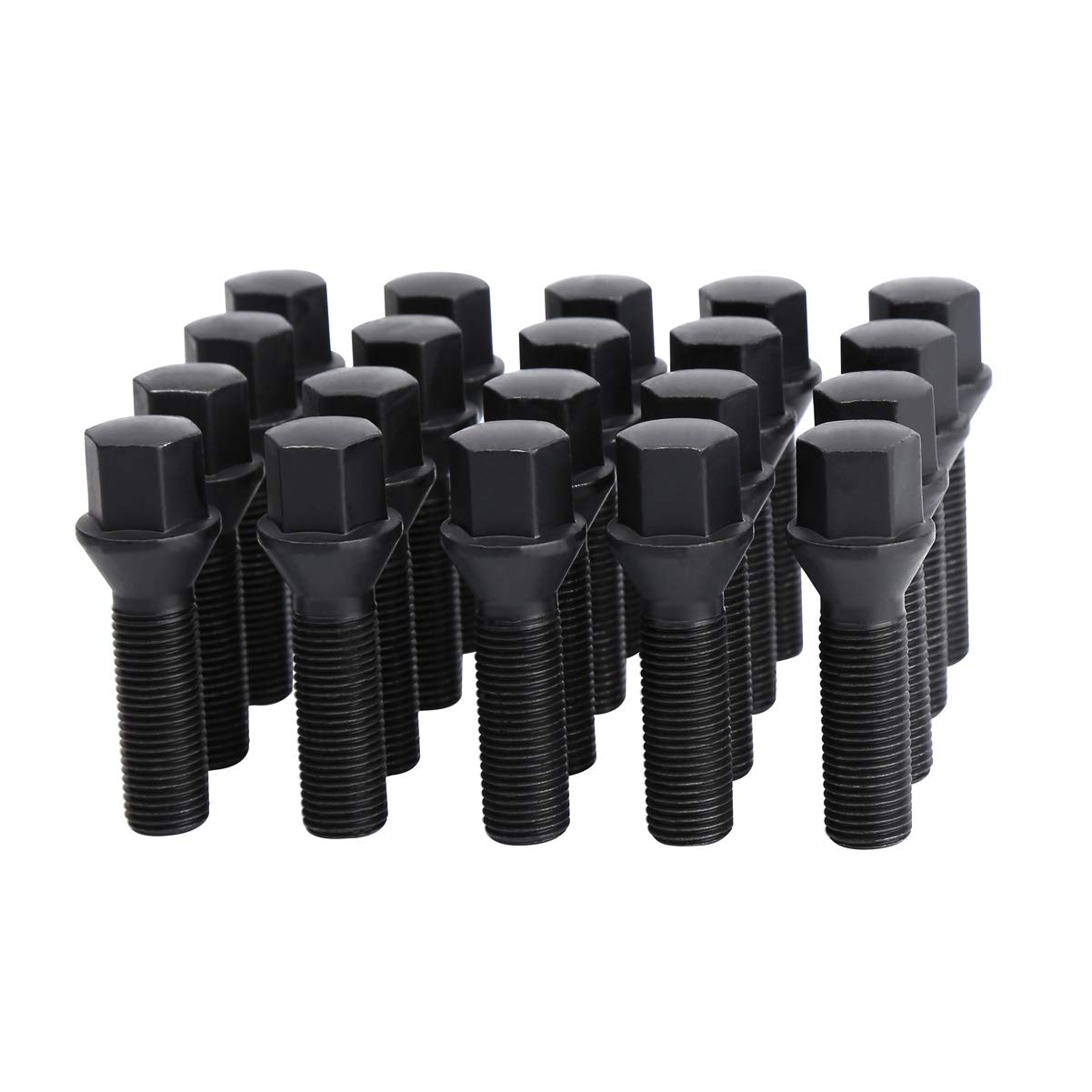

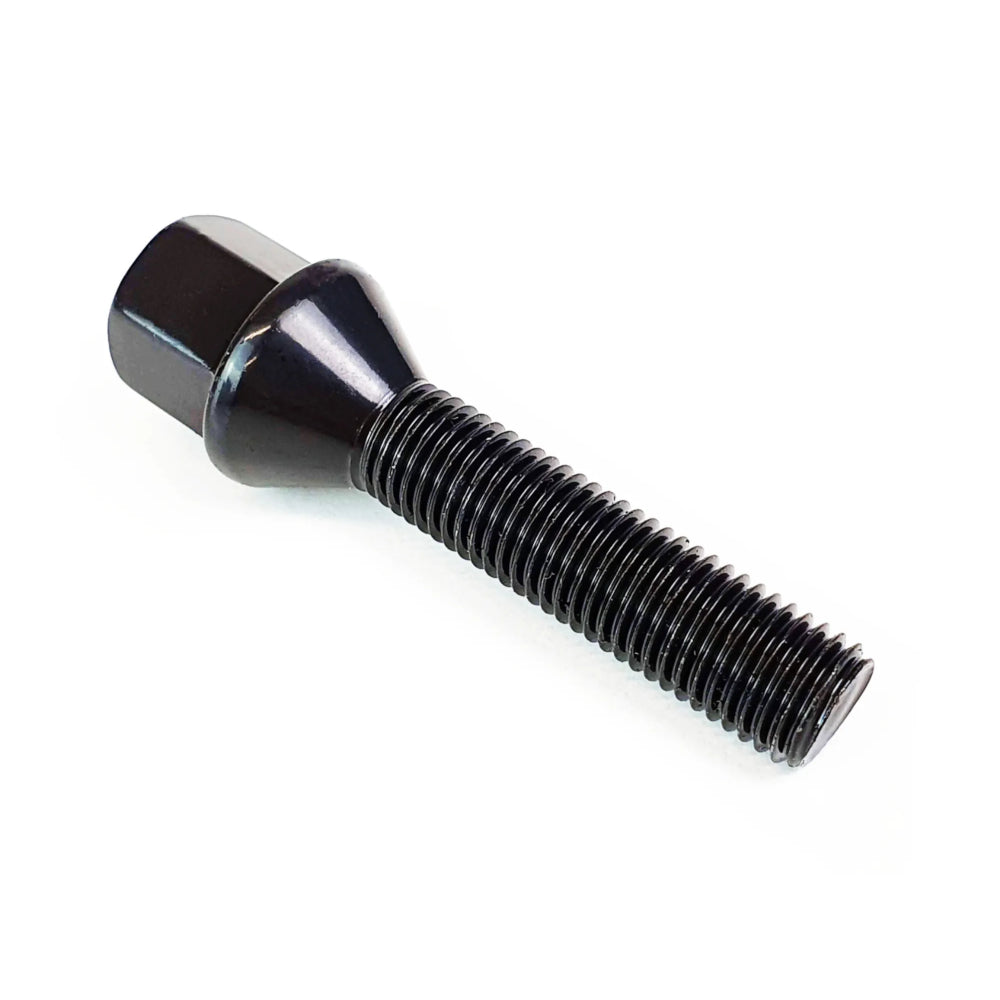

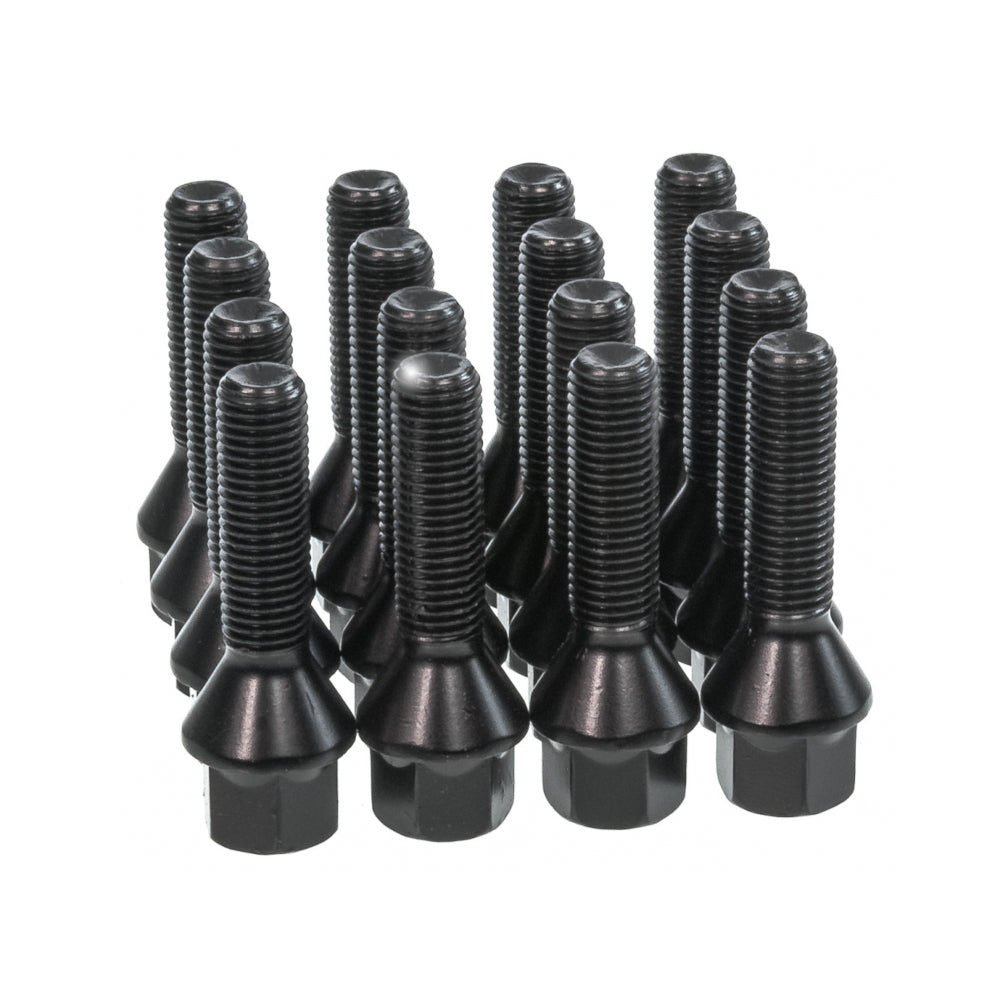

M12X1.5 Extended Wheel Bolts for BMW
Extended steel wheel bolts to be used when OEM ones are too short and do not thread into your wheel hub sufficiently.
Usually used in conjunction with aftermarket alloy wheels and/or wheel spacers to ensure the wheels and wheel spacers are mounted securely to the wheel hub.
Specifications:
Material: Steel
Wheel Bolt Thread Size & Thread Pitch: M12X1.5
Wheel Bolt Head Size: 17mm Hex
OD: 22mm
Seat Type: 60 degree tapered/conical seat
Stud Grade: 10.9
Finish: Anodized Black
Available Lengths: 27mm(Stock Length), 37mm, 39mm, 42mm or 47mm
Quantity: 1 Wheel Bolt (Please select the required quantity)
Application: 5 Lug BMW with aftermarket wheels and/or spacers requiring cone seat bolts
Size Recommendation:
Stock (no spacers) - 27mm
3mm Spacers - 30mm
5mm Spacers - 32mm
10mm Spacers - 37mm
12mm Spacers - 39mm
15mm Spacers - 42mm
20mm Spacers - 47mm
Common Applications:
BMW 1' E81 (02/2006 — 12/2011)
BMW 1' E87 (02/2003 — 02/2007)
BMW 1' E87 LCI (01/2006 — 06/2011)
BMW 1' E88 (11/2006 — 10/2013)
BMW 1' E82 (11/2006 — 10/2013)
BMW 3' E21 (02/1975 — 12/1983)
BMW 3' E30 (12/1981 — 02/1994)
BMW 3' E36 (11/1989 — 08/2000)
BMW 3' E46 (04/1997 — 08/2006)
BMW 3' E90 (02/2004 — 09/2008)
BMW 3' E90 LCI (07/2007 — 12/2011)
BMW 3' E91 (02/2004 — 08/2008)
BMW 3' E91 LCI (07/2007 — 05/2012)
BMW 3' E92 (05/2005 — 02/2010)
BMW 3' E92 LCI (11/2008 — 06/2013)
BMW 3' E93 (09/2005 — 02/2010)
BMW 3' E93 LCI (11/2008 — 10/2013)
BMW 5' E12 (02/1972 — 07/1981)
BMW 5' E28 (09/1980 — 12/1987)
BMW 5' E34 (03/1987 — 06/1996)
BMW 5' E39 (02/1995 — 12/2003)
BMW 5' E60 (12/2001 — 12/2009)
BMW 5' E60 LCI (10/2005 — 12/2009)
BMW 5' E61 (10/2002 — 02/2007)
BMW 5' E61 LCI (11/2005 — 05/2010)
BMW 6' E24 (10/1975 — 04/1989)
BMW 6' E63 (05/2002 — 07/2010)
BMW 6' E63 LCI (04/2006 — 07/2010)
BMW 6' E64 (09/2002 — 07/2010)
BMW 6' E64 LCI (04/2006 — 07/2010)
BMW 7' E23 (10/1976 — 06/1986)
BMW 7' E32 (10/1985 — 04/1994)
BMW 7' E38 (07/1993 — 07/2001)
BMW 7' E65 (02/2000 — 07/2008)
BMW 8' E31 (07/1989 — 05/1999)
BMW M1 E26 (06/1980 — 07/1981)
BMW X1 E84 (09/2008 — 06/2015)
BMW X5 E53 (10/1998 — 09/2006)
BMW Z1 Roadster (07/1988 — 06/1991)
BMW Z3 E36 (12/1994 — 06/2002)
BMW Z4 E85 (01/2002 — 08/2008)
BMW Z4 E86 (10/2005 — 08/2008)
BMW Z4 E89 (01/2008 — 08/2016)
BMW Z8 E52 (12/1998 — 07/2003)
BMW MINI R50 (09/2000 — 11/2006)
BMW MINI R53 (09/2000 — 11/2006)
BMW MINI R56 (10/2005 — 08/2010)
BMW MINI Clubman R55 (10/2006 — 07/2010)
BMW MINI Cabrio R52 (11/2002 — 07/2008)
BMW MINI Cabrio R57 (10/2007 — 07/2010)
If you are unsure or have any queries, you can contact us or refer to our wheel fitment guide. The information provided serves as a general guide. Images used are for reference only and is affected by the selected size. You should verify your wheel size, stud pattern (p.c.d.), wheel nut thread pitch, and/or centre bore of your specific vehicle, as it may differ within vehicle makes. All wheels and wheel accessories should be installed professionally by qualified individual or shop for safe vehicle operation.
